CO2 diffuser question.

[Laurie131]

My CO2 journey is feeling like a never ending expense. I thought the initial cost would cover everything, but things keep adding up.
I have a 75 gallon and I’m unsure about purchasing an in-line diffuser, for my fx2, at a cost of $100. I have euro bracing, which interferes with the placement of everything in my Aquarium, which is open to my dining room and my living room. I can only place items on either side of the aquarium. This makes adding an in tank diffuser tricky. My lily pipes are acrylic, so not really noticeable protruding the 2 1/2 inches on the side.
The problem is lining up the in tank diffuser so the rising CO2 bubbles are in line with the water flow into the aquarium, while trying to hide it. I have tried and it’s frustrating with the rigid co2 tubing and how hard it is to hide the diffuser 2-3” from the side glass in the living room side of the aquarium.

My biggest questions are how long an expensive in line diffuser lasts and do they restrict flow? I’d appreciate suggestions for hiding a in tank diffuser? Any thoughts ideas, or suggestions would be greatly appreciated.



[Naturescapes_Rocco]

No, they don't restrict flow much at all! Same inner diameter as the standard 16/22mm aquarium canister tubing.

The ceramic does clog over time and decreases performance. I recommend buying at least 1 spare ceramic ring. Every 3ish months, swap the ceramic out, and bleach the old one thoroughly, then rinse with clean water and set aside to swap back in ~3 months time. Install the inline diffuser as close to your filter pump as possible, so the bubbles have as much time in the aquarium tubing to dissolve before entering the aquarium.

Also, consider a horizontal reactor if you have room instead! They produce no mist (clear water), are easy to set up, require zero maintenance, and are pretty easy to dial in. The only downside is that they take up quite a lot of room, so if you don't have any room for one, an inline diffuser is probably best.



[*Ci*]

I switched from inline diffusers to an in tank version of a horizontal diffuser, called a spray bar or open flow diffuser on both my 68 and 84g tanks. Reasons including no more fiddling with my needle valves to try to dial in flow, no more taking everything apart to clean the ceramic disk as well as just routine cleaning of the canister hoses (I found that the cleaning brush did not go past the diffuser). I didn’t mind the fine mist of bubbles which was an immediate visual as to whether the co2 was still running or not, but I built my open flow diffusers out of clear acrylic so I can still just look at them and tell.
They are attached to the water return spray bars in my tanks, and they do not really detract much visually and I like that they don’t have the extra plumbing involved with building and tying in a watertight unit to the existing canister hoses. Just a small co2 line up and over the back rim.



[Laurie131]

No, they don't restrict flow much at all! Same inner diameter as the standard 16/22mm aquarium canister tubing.

The ceramic does clog over time and decreases performance. I recommend buying at least 1 spare ceramic ring. Every 3ish months, swap the ceramic out, and bleach the old one thoroughly, then rinse with clean water and set aside to swap back in ~3 months time. Install the inline diffuser as close to your filter pump as possible, so the bubbles have as much time in the aquarium tubing to dissolve before entering the aquarium.

Also, consider a horizontal reactor if you have room instead! They produce no mist (clear water), are easy to set up, require zero maintenance, and are pretty easy to dial in. The only downside is that they take up quite a lot of room, so if you don't have any room for one, an inline diffuser is probably best.

Thank you for the detailed information. I really appreciate it. I might have room for reactor. I haven’t done any research on them, but I’ll look .



[Koan]

an in-line diffuser, for my fx2, at a cost of $100.

Here's another inline diffuser I have used with good result, $20. Flow bypasses completely, replaceable diffusion disk is parallel to flow rather than across it.

Be sure to tighten the pipe clamps down well on the filter tubing



Here's the information on the horizontal reactor, an easy DIY

Article 'Yugang CO2 Reactor - A Guide'

Contents: Benefits of Yugang reactor Calculate the reactor dimensions Overflow mode, regulator mode, pH/CO2 controller Overflow mode, step by step instruction Regulator mode, pH/CO2 controller mode, step by...

• Yugang
• Sep 15, 2025
• 20 min read
• Reaction score: 7
• Comments: 9
• Category: CO2 in the Planted Aquarium

Or 2 versions can be purchased here

Yugang Stainless Steel Horizontal CO2 Reactor

Premium Yugang stainless steel horizontal CO2 reactor with 99%+ dissolution rate. Inline design, invisible installation, maximum efficiency for planted aquariums.

aquarockscolorado.com

Yugang Horizontal CO2 Reactor - Acrylic

Premium Yugang horizontal CO2 reactor with acrylic construction. 99% CO2 dissolution rate, inline design, perfect for planted aquariums. Efficient CO2 diffusion system.

aquarockscolorado.com



[Laurie131]

No, they don't restrict flow much at all! Same inner diameter as the standard 16/22mm aquarium canister tubing.

The ceramic does clog over time and decreases performance. I recommend buying at least 1 spare ceramic ring. Every 3ish months, swap the ceramic out, and bleach the old one thoroughly, then rinse with clean water and set aside to swap back in ~3 months time. Install the inline diffuser as close to your filter pump as possible, so the bubbles have as much time in the aquarium tubing to dissolve before entering the aquarium.

Also, consider a horizontal reactor if you have room instead! They produce no mist (clear water), are easy to set up, require zero maintenance, and are pretty easy to dial in. The only downside is that they take up quite a lot of room, so if you don't have any room for one, an inline diffuser is probably best.

Thank you. I really appreciate your advice. I didn’t consider a reactor, but I’ll look into it. I do have room for one.



[Laurie131]

Here's another inline diffuser I have used with good result, $20. Flow bypasses completely, replaceable diffusion disk is parallel to flow rather than across it.

Be sure to tighten the pipe clamps down well on the filter tubing

View attachment 11915

Here's the information on the horizontal reactor, an easy DIY

Article 'Yugang CO2 Reactor - A Guide'

Contents: Benefits of Yugang reactor Calculate the reactor dimensions Overflow mode, regulator mode, pH/CO2 controller Overflow mode, step by step instruction Regulator mode, pH/CO2 controller mode, step by...

• Yugang
• Sep 15, 2025
• 20 min read
• Reaction score: 7
• Comments: 9
• Category: CO2 in the Planted Aquarium

Or 2 versions can be purchased here

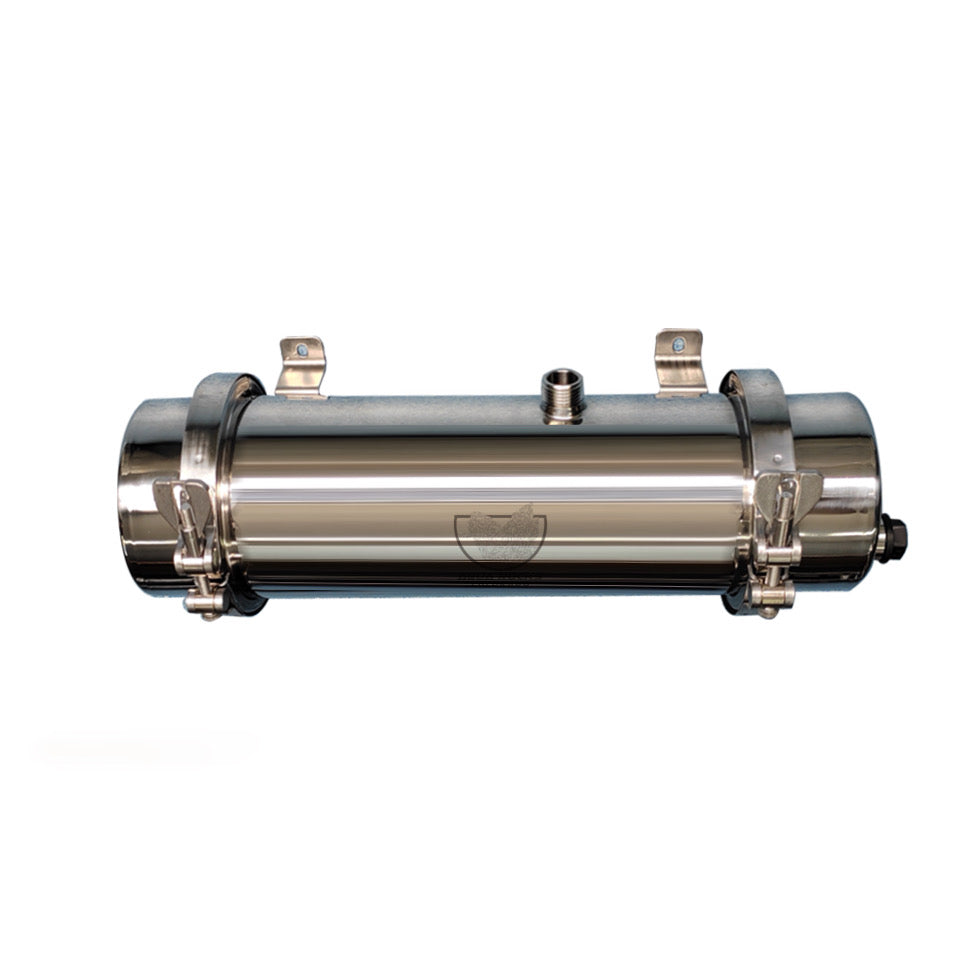

Yugang Stainless Steel Horizontal CO2 Reactor

Premium Yugang stainless steel horizontal CO2 reactor with 99%+ dissolution rate. Inline design, invisible installation, maximum efficiency for planted aquariums.

aquarockscolorado.com

Yugang Horizontal CO2 Reactor - Acrylic

Premium Yugang horizontal CO2 reactor with acrylic construction. 99% CO2 dissolution rate, inline design, perfect for planted aquariums. Efficient CO2 diffusion system.

aquarockscolorado.com

Thank you. I really appreciate the advice and links and I’ll look at adding a reactor.



[BenB]

My CO2 journey is feeling like a never ending expense.

This describes every hobby I have.

Good luck with getting your CO2 sorted.
